Products Detailed (BMC 0195)

BMC 0195

Flame-retardant bulk moulding compound for high-performance electrical applications.

Product Overview

Menzolit® BMC 0195 is a glass fibre reinforced, mineral-filled polyester compound engineered for demanding electrical, energy and industrial environments. It combines high mechanical strength with exceptional thermal stability and low smoke emission during combustion. The material maintains its integrity without melting or dripping in case of fire and contains no halogens or substances listed as REACH SVHC.

Application Industries

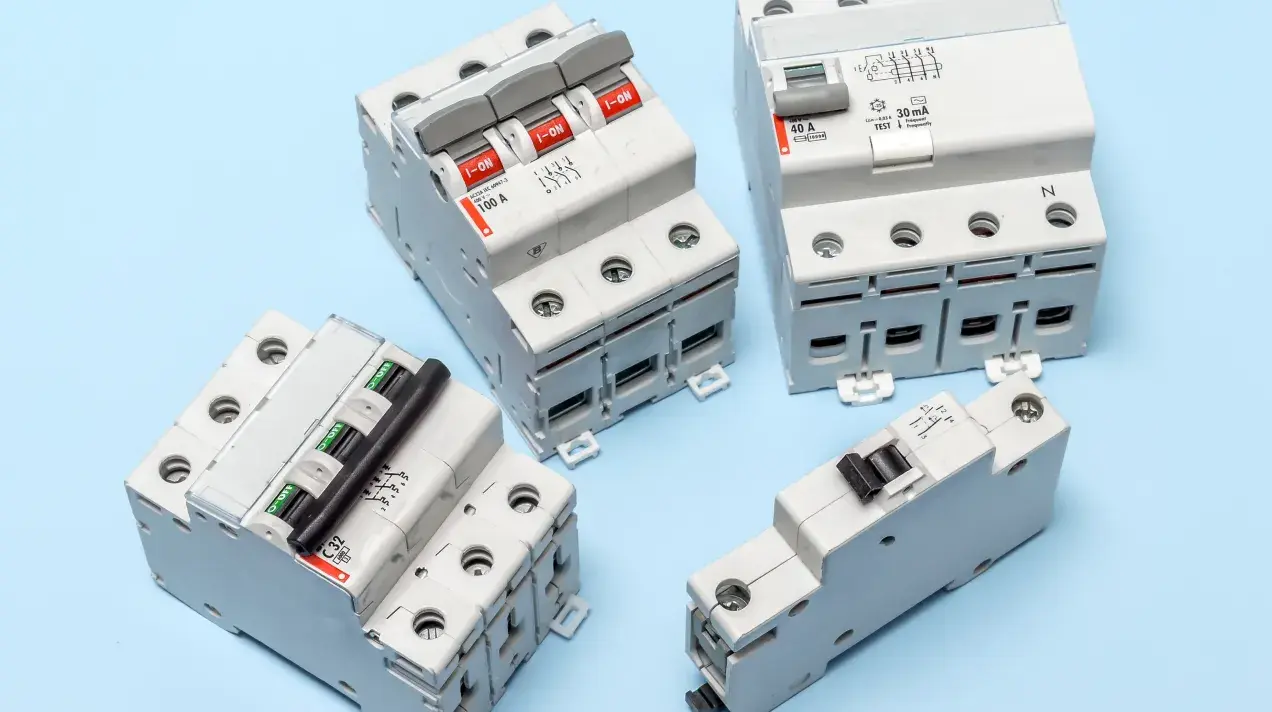

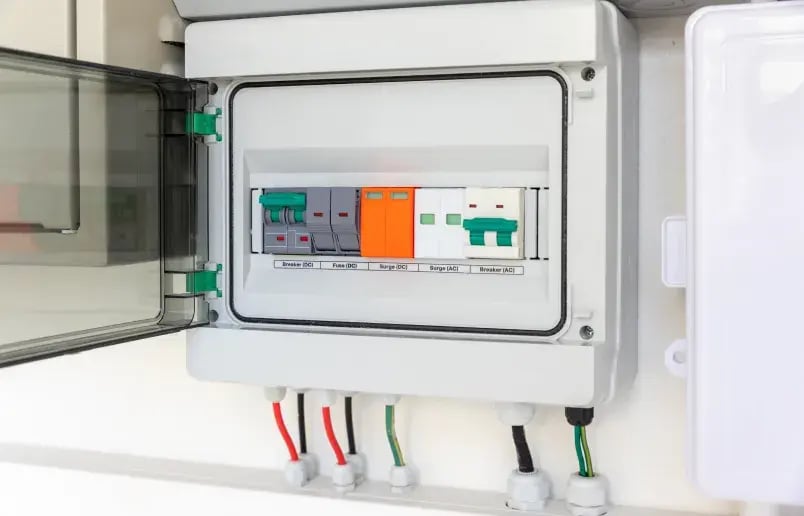

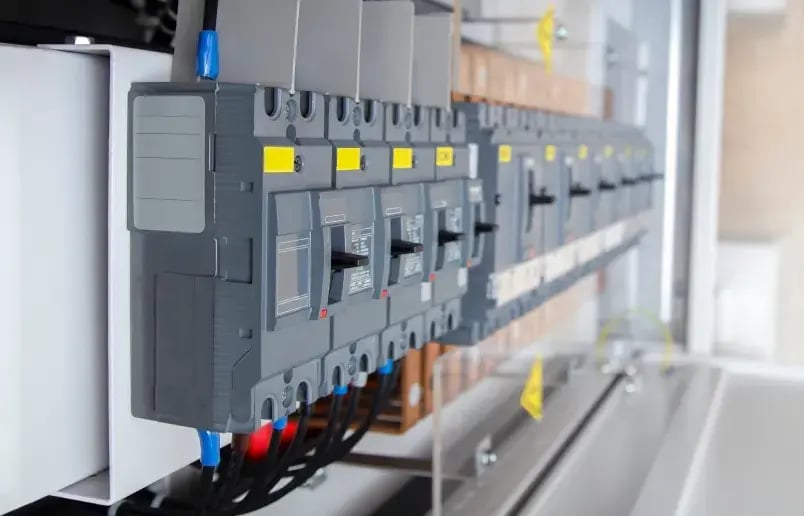

Electrical

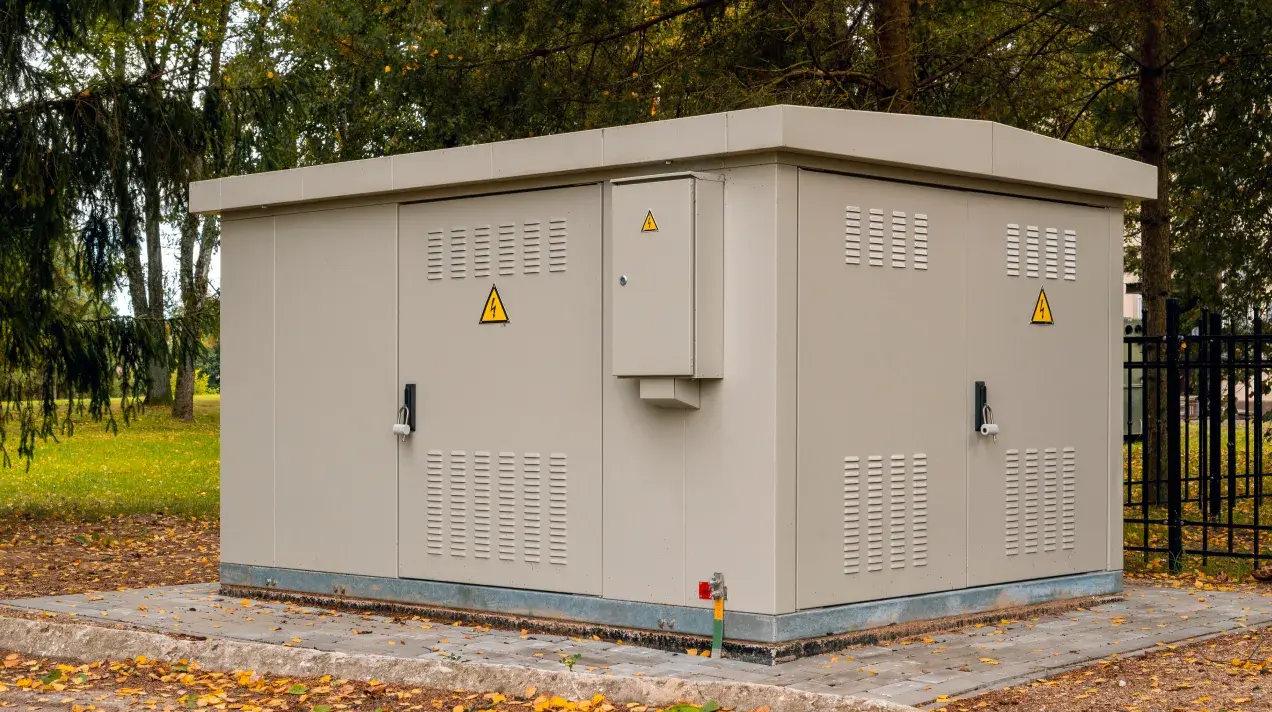

Energy

Industrial

Key Properties

Excellent flame resistance (UL 94 V-0, 1.5 mm)
High mechanical strength and electrical insulation
Stable performance under continuous service temperatures up to 165°C
Low smoke generation and no halogen content

Compliance & Certifications

UL 94 V-0 (1.5 mm)
Glow Wire 960°C (IEC 60707-3)
REACH and RoHS compliant
Free from halogens and SVHC substances

Talk to Our BMC Expert

BMC 0195 provides a reliable solution for applications requiring superior flame resistance and electrical insulation. Its formulation supports consistent mechanical and thermal performance under high load and temperature conditions. The compound’s processing stability and uniform flow make it ideal for complex mould designs in precision components.

BMC 0195 meets the safety and performance requirements of modern electrical and industrial standards. Its UL 94 V-0 flammability rating and Glow Wire Index of 960°C make it a preferred choice for fire-safe components in energy and electrical systems. The combination of high tensile strength and dielectric stability ensures long-term reliability in challenging operational environments.

BMC 0195 is engineered for mechanical strength, dimensional stability and fire safety. It delivers dependable electrical insulation properties, even under heat and stress, while maintaining a low water absorption rate for consistent performance.

Density: 1.8 g/cm³

Flexural Strength: 100 MPa

Tensile Strength: 30 MPa

HDT: >200°C

Flammability: yellow card V-0 1,5 e 3mm

* The technical parameters are average values. Depending on the formulation and customer requirements, different technical values may be achieved.

Download BMC 0195 Datasheet

For optimal processing, BMC 0195 should be injection moulded in heated steel moulds, preferably with chrome plating. Recommended moulding parameters include controlled temperature and pressure settings for uniform curing. Store in styrene-tight packaging away from moisture and direct sunlight. Menzolit offers technical guidance, testing support, and design consultation to help achieve superior component quality and performance.
